Customised RFID Inlay Printing

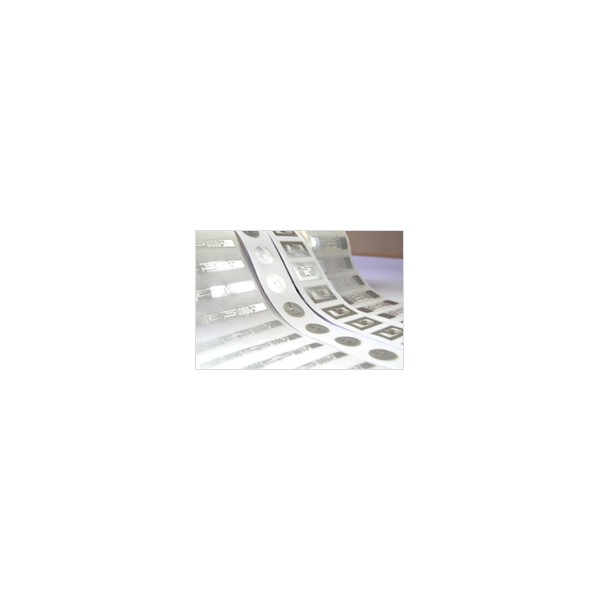

RFID Wet Inlay can be attached into other object because it has a self-adhesive label on it.

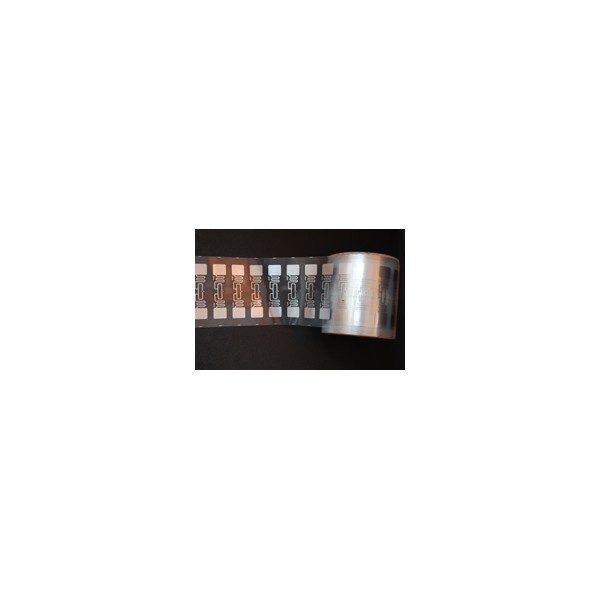

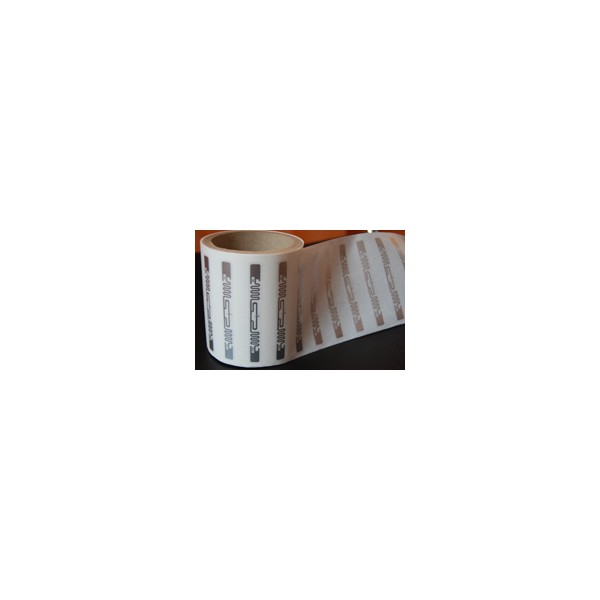

RFID Dry Inlay can be roll packed


Please contact us for a free quotation.

More details

Description:
Operating Frequency:
HF 13.56MHz, UHF GLOBAL 860MHz-960MHz
Standard
ISO14443, ISO15693 ,ISO 18000
Material: PVC, PET
Dimension
HF:300*25mm,86*54mm,80*50mm,50*50mm,
dia.50mm,45*45mm, dia.45mm,40*25mm,,35*35mm
,dia.35mm,dia.30mm,25*25mm,dia.25mm,etc
UHF:300*25mm,120*38mm,100*100mm,100*15mm,
86*54mm,80*50mm,etc
Thickness: 0.10 - 0.15mm ,
Antenna:
HF: AL Etching, Ultrasonic Embedding;
UHF: AL Etching

Bonding:
HF: FLIP chip,MOA2,
UHF: Flip chip
Working temperature: -25C ~ +55C
Store temperature: -25C ~ +65C
